Tomato Sauce Pouch Filling Line Guide

Illustrative tomato sauce pouches beside a filling line, showing the packaging and equipment interface

Tomato Sauce Line Buyer Guide

Plan the sauce line and pouch as one project

A practical guide to matching processing output, pouch format, filling speed, sealing and thermal treatment—without confusing a machine’s nameplate rating with finished packs per hour.

Capacity basisPremade or rollstockFilling + sealingThermal-process fit

Discuss Your Pouch Specification

Quick Answer

How do you plan a tomato sauce pouch filling line?

Start with the finished product and required packs per hour, then work backward through filling, sealing, any heat treatment and the upstream process. Confirm what every quoted capacity measures—raw tomatoes, pulp, blended sauce or accepted finished packs. Select a pouch only after the product, fill weight, filling method, temperature, storage and post-fill process are known.

The pouch format and line must be checked together. Runlong Pack supplies flexible packaging; this guide does not offer or rate tomato-processing machinery.

CapacityConfirm the measurement point and limiting stage

Pack rateCalculate from finished-product kg/h and fill weight

Pouch routePremade pouch or formed from rollstock

Thermal processConfirm the complete validated product schedule

Start With the Whole Process

What does a tomato sauce pouch line include?

A project may connect raw-tomato preparation and washing to sorting, pulping or refining, buffering, concentration or blending, then pouch filling, sealing, a product-specific heat process if required, cooling, inspection and case packing. The exact sequence depends on the recipe, finished product, package and factory layout; it is not one fixed equipment list.

The packaging decision is usually made too late when it is treated as a standalone bag purchase. Pouch dimensions, opening, fitment, web width and sealing behavior affect the downstream machine setup. If filled pouches will be heated or cooled, the package has to be evaluated across that complete route too.

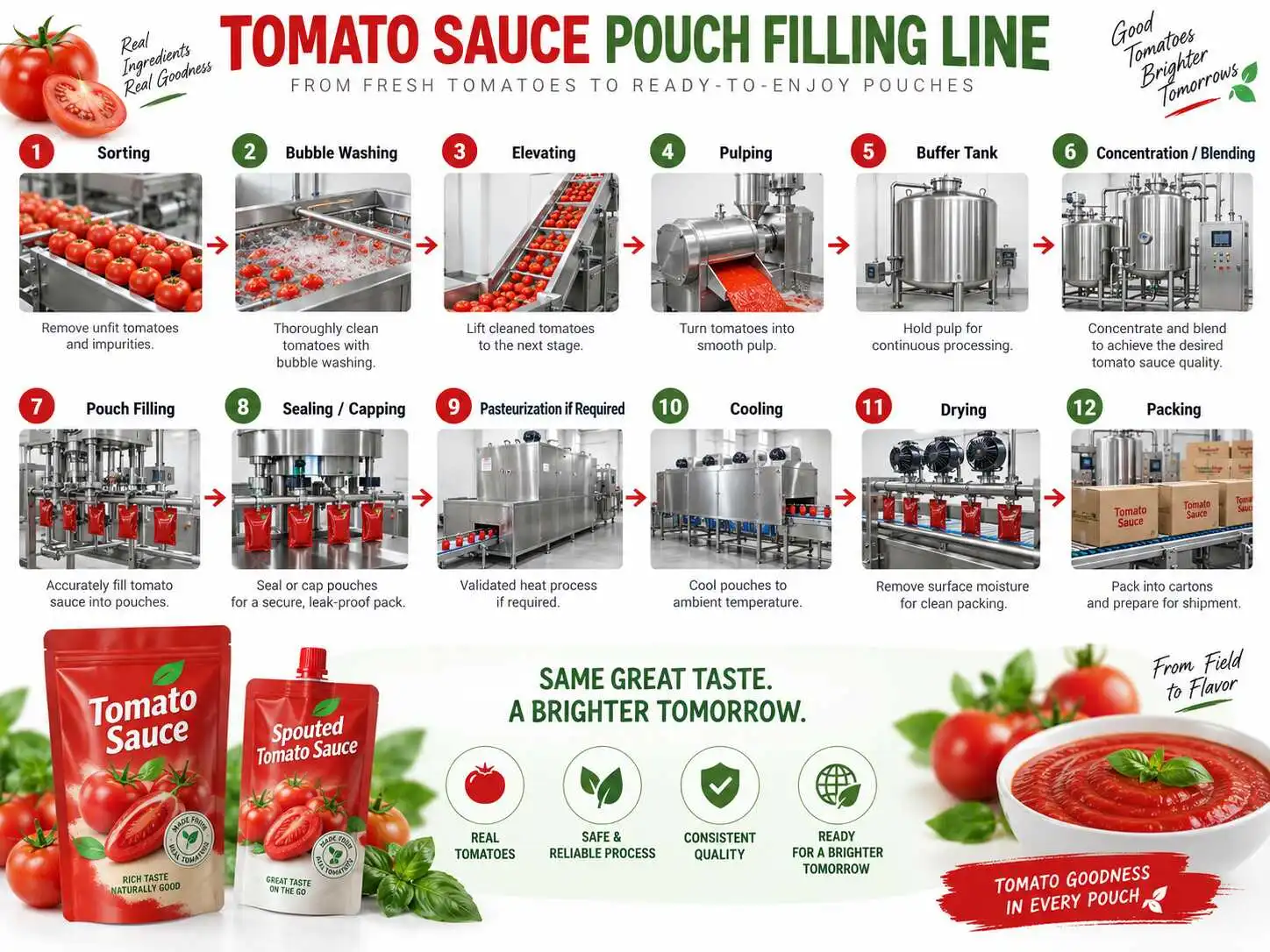

Illustrative tomato sauce process flow from sorting and washing through pulping, filling, sealing, optional pasteurization, cooling and packing — Illustrative process map only. The required stages and order must be confirmed for the product and plant; this generated graphic is not a supplier equipment specification.

Define the scope before comparing quotations. Ask each supplier to show the process boundary, included and excluded machines, hand-off points, utilities, cleaning requirements and what their capacity figure represents.

Separate process equipment from flexible packaging

Processing-equipment suppliers specify washing, pulping, cooking or concentration, pumps, fillers, sealers and thermal equipment. Runlong Pack’s role is the flexible package: pouch or rollstock format, dimensions, print, material performance and the information needed to assess fit with the customer’s filling and downstream process. We do not represent the illustrative machines in the graphics as Runlong products.

Capacity Is a Definition, Not Just a Number

How should you read a tomato-sauce line capacity?

A number in kg/h is incomplete unless the supplier identifies the material and the point in the process. “500 kg/h” might refer to incoming tomatoes, extracted pulp, blended sauce, or a nominal equipment rate under stated conditions. Those are different outputs. Sorting loss, skin and seed removal, concentration, recipe additions, start-stop time and rejects all affect what reaches the shipping case.

For every major stage, request the rated range, the test conditions and the capacity basis. For the filler and sealer, ask for accepted packs per minute or hour at the actual package size and product—not only a pump’s flow rate. Confirm whether a stated speed includes feeding, cap placement, sealing, inspection, routine stops and changeovers.

Find the practical bottleneck

The slowest effective stage can constrain the whole line, but comparing nameplate numbers alone is not enough. A pulper’s rate may change with tomato variety, feed preparation and screen choice. A filler’s speed may change with viscosity, fill weight, pouch handling and the need to keep the seal area clean. A downstream thermal process may set a maximum conveyor rate or require a buffer. Ask the integrator to show how the proposed line is balanced at your actual operating conditions.

Ask the upstream supplier

Is throughput based on raw input, pulp or finished sauce?
What recipe, solids level and feed assumptions were used?
Which step limits continuous output?
What allowance is made for cleaning, stops and product changeovers?

Ask the filling-line supplier

What pouch size and fill weight were tested?
Was the product smooth, viscous or particulate?
Is the output a nominal cycle rate or accepted packs?
Does the quoted speed include capping, leak checks or downstream handling?

Evidence note: The supplied reference text mentions equipment capacities, but the original supplier quotations and test specifications were not provided. This article therefore makes no supplier-specific kg/h claim and does not present those figures as verified line performance.

Translate Output Into Packages

How does pouch size change the required filling speed?

For a first-pass estimate, divide the target finished-product mass flow by the net fill weight per pouch:

Required pouches per hour = finished sauce output (kg/h) × 1,000 ÷ fill weight (g per pouch)
Illustration only: if measured finished sauce output were 500 kg/h and each pouch held 500 g, the arithmetic result would be 1,000 pouches per hour before stops, rejects, changeovers and other operating allowances. This is not a machine rating or a Runlong production claim.

Repeat the calculation for each pack size and SKU. A smaller sachet requires more filling and sealing cycles for the same sauce mass. A larger pouch means fewer packs, but may require different pouch handling, opening, dosing and case-packing arrangements. The filler manufacturer should confirm achievable accepted-pack speed using your product and package.

Keep mass flow and package count separate

Processing suppliers may quote kg/h, while packaging equipment suppliers may quote packs/minute. Convert between them only with a clear finished-product basis and fill weight. Then add the buyer’s planned operating schedule and agreed acceptance criteria; do not treat a mathematical conversion as a guarantee that one machine can achieve that rate.

Select the Format Around Use and Equipment

Which flexible pouch format fits tomato sauce?

There is no single best format for every tomato product. Retail ketchup, foodservice sauce, a single-serve condiment and a family-size refill have different serving, dispensing and line requirements. Match consumer use to the filler architecture and package features before fixing the specification.

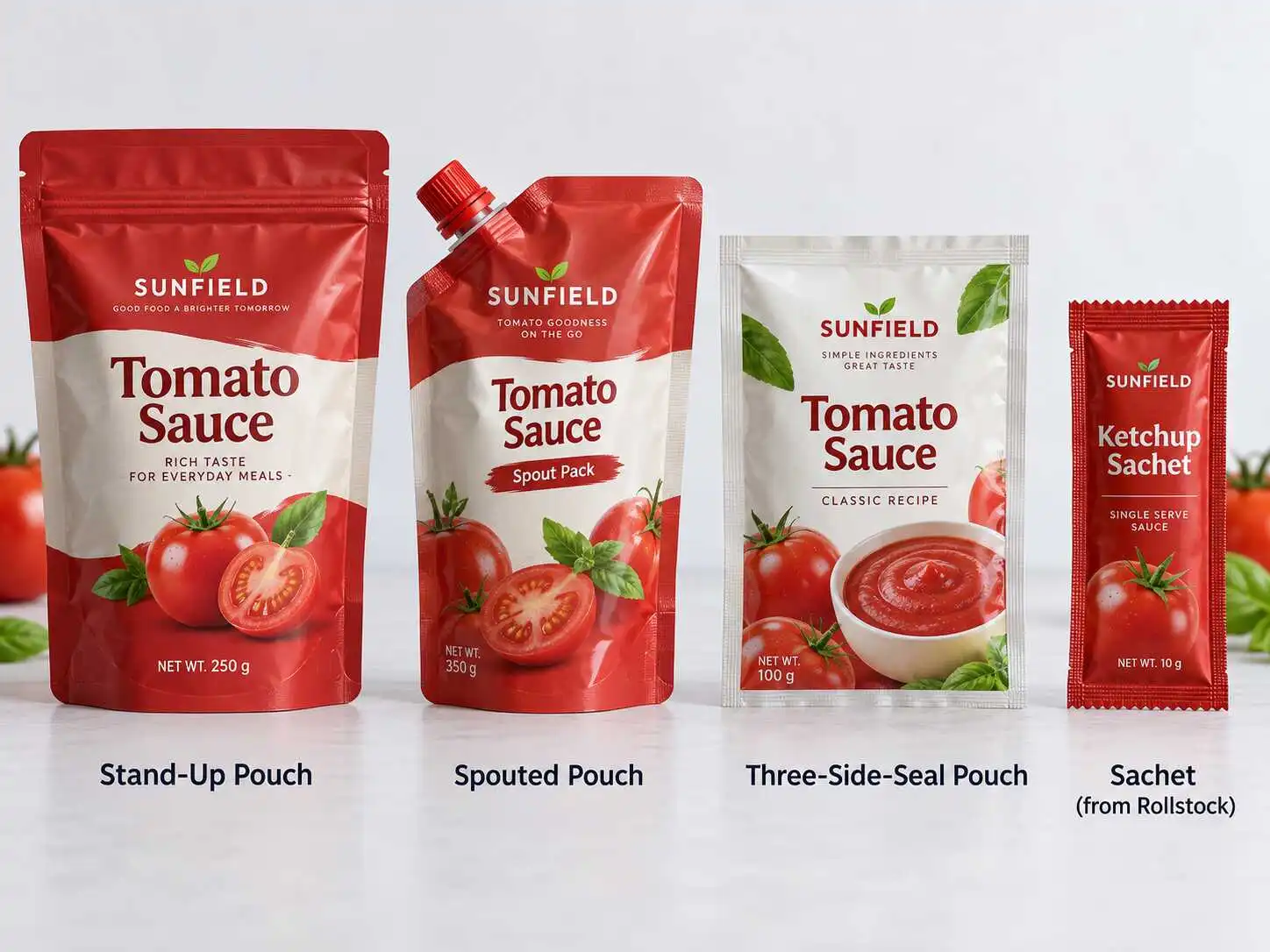

Illustrative comparison of tomato sauce packaging formats: stand-up pouch, spouted pouch, three-side-seal pouch and rollstock sachet — Format concepts for discussion, not tested Runlong customer packs. Confirm the final format, dimensions and equipment route with the buyer and line supplier.

Format	May suit	Confirm before selecting
Premade stand-up pouch	Retail or foodservice packs that need a stable display and a pre-converted pouch	Pouch loading, opening, fill path, top-seal width and whether a reclose feature is actually needed
Premade spout pouch	Pourable or squeezable sauce where controlled dispensing or reclosing is useful	Product flow through the fitment, spout and cap specification, filling route, closure handling and process exposure
Three-side-seal pouch	Flat single-use or portion packs, subject to fill size and equipment design	Horizontal or other machine arrangement, pouch dimensions, seal layout and the required pack rate
Rollstock sachet or formed pouch	Projects where the machine forms the package from a printed flexible web	Web width, repeat length, machine direction, registration, sealing window and VFFS/HFFS compatibility

Premade pouches and rollstock are not interchangeable on a line without a change in equipment and setup. A premade-pouch machine handles converted bags; a form-fill-seal machine forms a package from web, doses the product and makes seals. Discuss the actual model and drawing with the film or pouch supplier before ordering.

Already have a machine?
Share the model, pouch drawing or film specification so packaging compatibility can be discussed against the real setup.

Review My Packaging Fit

Describe the Sauce, Not Just the Product Name

Why do viscosity and particles matter at filling?

“Tomato sauce” may describe a smooth, pourable sauce; a thick ketchup; a concentrated paste; or a recipe with visible herbs, onion or other particles. These products can behave differently at the filler, nozzle and seal area. The filling-equipment supplier needs the real product or a representative sample to assess dosing and shutoff. The packaging supplier needs the actual fill conditions and format to discuss suitable pouch geometry and seal design.

Product details to record

Smooth, thick or particulate texture
Particle type and approximate size, if present
Fill weight or volume per pack
Filling temperature and whether filling is hot or ambient
Storage target and intended shelf life

Line behavior to trial

Repeatable dose at the target pack rate
Drip or stringing after the fill cycle
Product splashing or smearing near the seal
Pouch stability during filling and closure
Performance after the real cooling and handling route

A photograph of a machine or a generic pump flow figure cannot prove performance with a particular recipe. Ask for a trial plan using representative product, final pouch format and the planned operating conditions.

Spout-Pouch Interface

What should you confirm on a tomato sauce spout pouch line?

A spout pouch line commonly has to present and hold the pouch, fill through an opening or fitment, handle the cap or closure, apply the specified torque or seal, and verify the finished pack. Actual machine sequences vary. A spouted format can make pouring and reclosing easier for the user, but it adds a fitment and closure interface that must be specified and tested with the sauce and process.

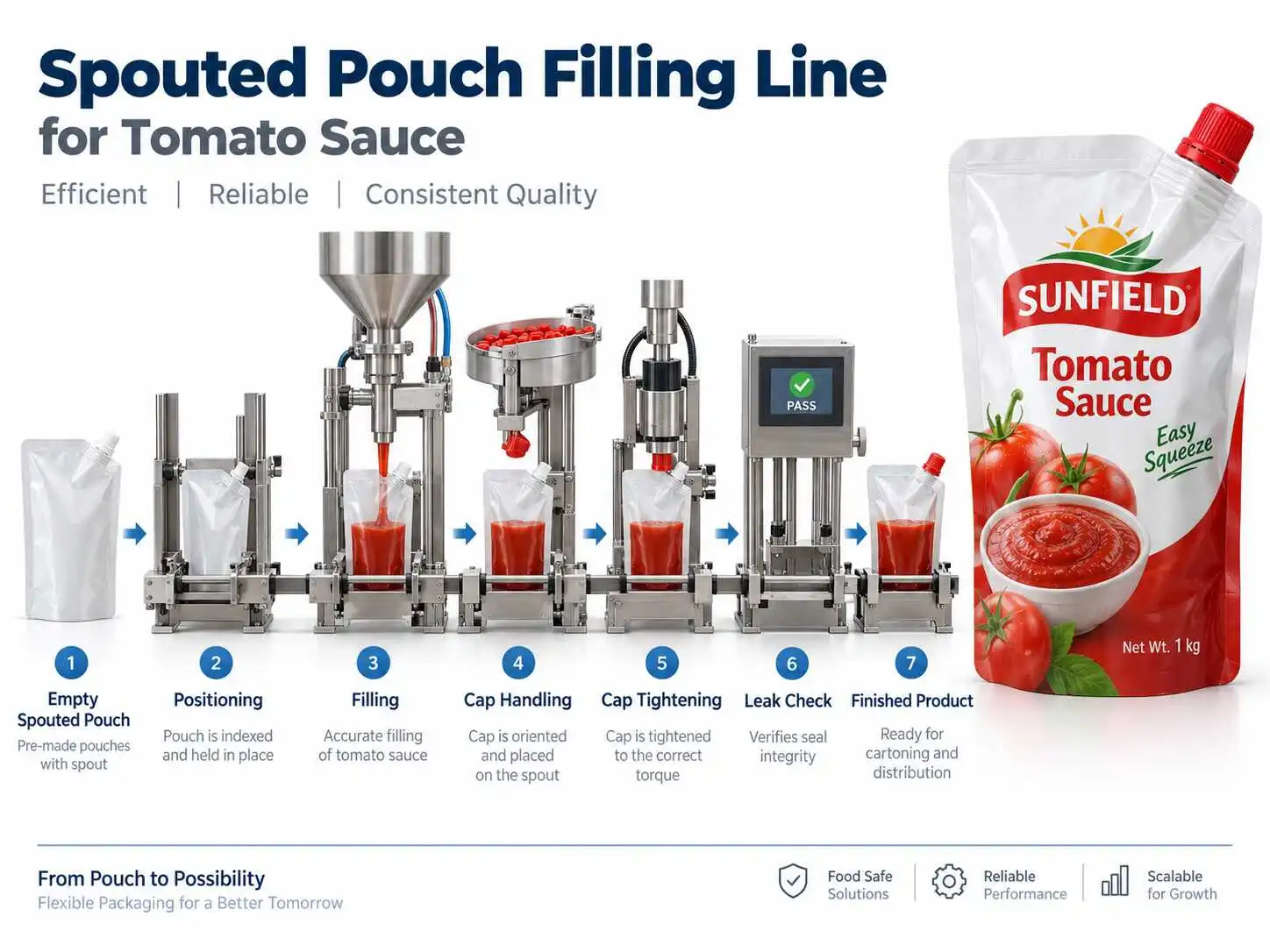

Illustrative spout-pouch line sequence showing pouch positioning, tomato sauce filling, cap placement, tightening and leak checking — Conceptual sequence only. Confirm the actual machine architecture, fill route, cap system, inspection method and process exposure with the equipment supplier.

Packaging details to align with the filler

Overall pouch dimensions, bottom construction and fitment position
Spout opening, neck, cap and closure specification
Filling through the spout versus filling through an open pouch before closure
How the line locates, supports and handles the pouch
Whether the pouch or closure sees hot-fill, in-pack heating, cooling or other treatment
How leaks and closure application are inspected and recorded

For a rollstock sachet, the coordination points differ: web width and repeat, print registration, forming shoulders, machine direction, product dosing and the sealing jaws are key. See the VFFS rollstock compatibility guide when the chosen line forms packs from roll film.

Seal Integrity Is a Process Issue

How can sauce at the seal create a leak risk?

If sauce, oil, water or food particles sit across the intended seal area, the seal may not form consistently. Wrinkles, poor pouch presentation, incorrect sealing settings, worn tooling or a mismatch between the package and process can also contribute. A clean-looking outside is not enough to demonstrate package integrity.

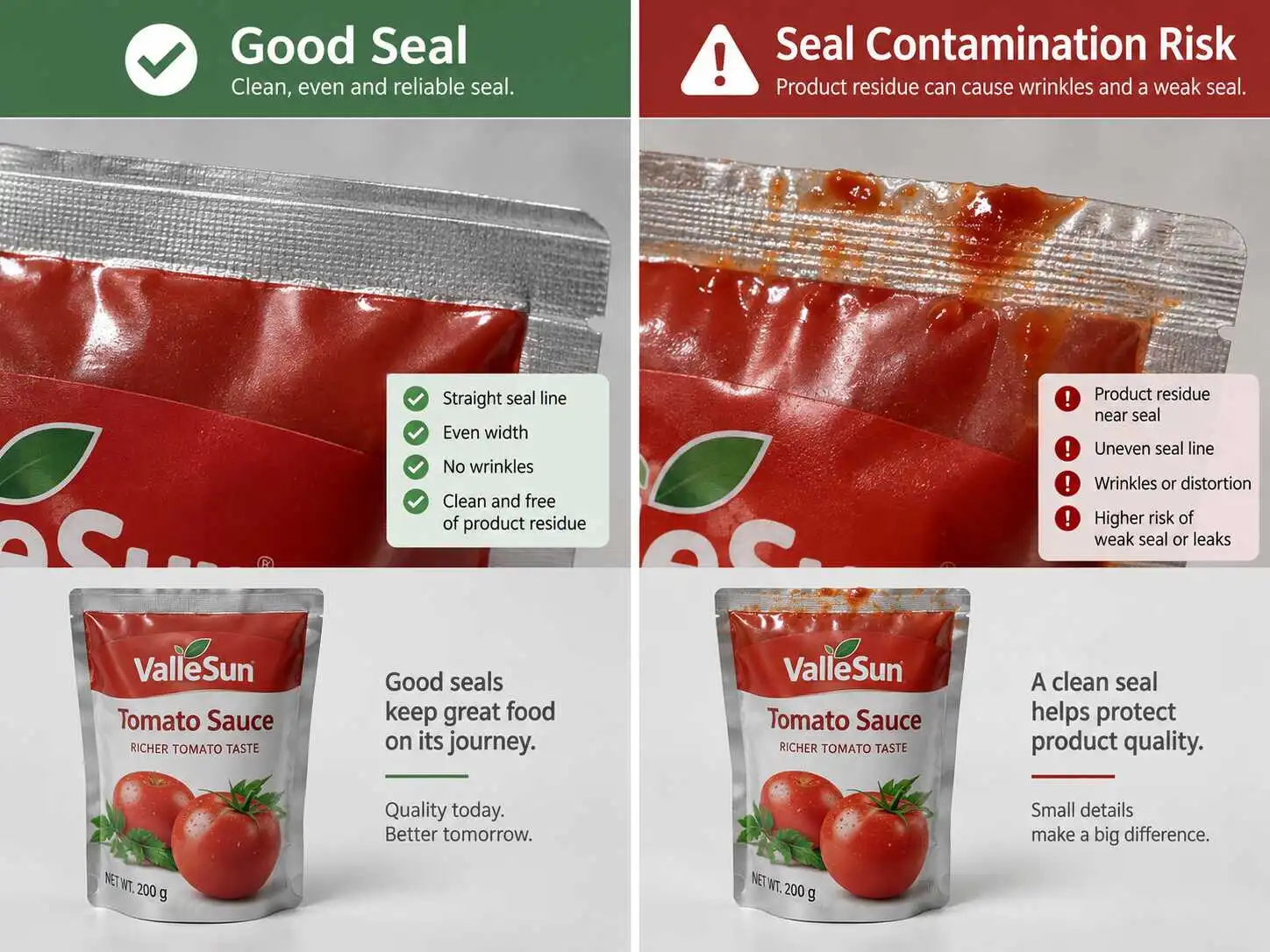

Illustrative comparison of a clean tomato-sauce pouch seal and product residue or wrinkles near a seal — Generated educational illustration of potential seal-area conditions; it is not a laboratory test result or a claim about a specific machine.

Build seal checks into the line trial

Agree the seal inspection and test method with the food processor and equipment supplier. Evaluate the actual filled product and production settings, including pouch handling and downstream treatment. Record the acceptance criteria, sampling plan, failure handling and who is responsible for release. If a failure occurs, preserve the sample and investigate the process instead of assuming that changing film alone will solve it.

For package discussions, send the seal drawing and process conditions. Pouch width, seal layout, fill path and any heat exposure help a flexible-packaging supplier assess the structure and geometry that need review.

Do Not Guess the Heat Process

How should pasteurization, hot-fill and retort affect pouch choice?

Hot-fill before closure, heating a sealed pouch, and retort processing are different product and package routes. A supplier’s equipment range is not a validated food process. The required time and temperature depend on the formulation, package size and geometry, process equipment, target product and applicable market rules. A qualified process authority or the responsible food-safety team must establish and validate the product schedule.

For packaging, identify exactly when the product enters the pouch, when the package is sealed, whether the sealed pack is heated, how it is cooled, and the storage conditions afterwards. Then review the laminate, sealant, fitment and closure against that full cycle. Do not treat “heat resistant” as proof of compatibility or shelf life.

Before ordering samples

Confirm the thermal route and the approved process schedule
Share product, fill weight, pouch dimensions and closure details
State whether packs are heated before or after sealing
Define cooling, storage and distribution conditions

During validation

Run the representative product in the intended pouch
Check seals, fitments and dimensions before and after treatment
Use the food processor’s approved safety and quality protocols
Document deviations, samples, acceptance criteria and approvals

For a retort-specific packaging discussion, use the retort pouch packaging guide. This tomato-line article does not substitute for product-specific process validation.

Packaging Construction

How should you brief a supplier on tomato sauce pouch materials?

Think in performance needs before asking for a named film recipe. The outer layer may support print and handling; barrier layers may be selected to manage oxygen, moisture or light; the inner sealant must suit the product contact and sealing conditions. Required performance depends on the recipe, filling and thermal route, distribution, storage and shelf-life target.

There is no one material structure to recommend from the phrase “tomato sauce.” Share the product composition and process, state the required barrier or shelf-life outcome, and ask the packaging supplier to explain the proposed structure and its limits. The finished package still needs to be assessed with the actual line and product. See the flexible packaging material structure guide for a layer-function overview.

Procurement Checklist

What information should you send before requesting a pouch quote?

A clear brief helps the equipment and packaging suppliers answer the right question. Send the same product and pack assumptions to each supplier so their proposals can be compared on a consistent basis.

Product and production target

Tomato sauce, ketchup, paste or another formulation
Smooth or particulate product; relevant particle details
Target finished-product kg/h and target accepted packs/hour
Fill weight or volume for every planned SKU
Filling temperature and filling method
Any post-fill thermal process and the approved schedule

Package and line specification

Premade pouch or rollstock; desired pouch format
Target pouch dimensions, opening, spout and cap if applicable
Filler manufacturer, model, drawings and line layout
Web width, repeat, machine direction and registration if rollstock
Storage, shelf-life and destination-market requirements
Annual or initial quantity, number of SKUs and artwork status

Preparing a tomato sauce project?
Send the product, pack format, fill weight, target output and machine information for a packaging-fit discussion.

Request a Packaging Review

Questions to close before approving a line

Which supplier owns the integration and acceptance test across the line?
What does each capacity figure measure, and under which product conditions?
Does the line trial use the final pouch or film, closure, recipe and fill weight?
Who approves the food-safety schedule and package compatibility?
What happens if the tested output or seal result misses the agreed criteria?

Frequently Asked Questions

Tomato Sauce Pouch Line FAQ

What determines the capacity of a tomato sauce pouch filling line?

Capacity depends on the rated and demonstrated output of each process stage under the actual product and operating conditions. Confirm whether each figure refers to raw tomatoes, pulp, finished sauce or accepted pouches, and identify the limiting stage rather than relying on the largest nameplate number.

Does a 500 kg/h tomato processing line make 500 kg/h of finished sauce?

Not necessarily. The number may refer to incoming tomatoes, pulp or another point in the process. Sorting, separation, concentration, recipe additions, stops and rejects affect finished output. Ask the supplier to define the measurement point and assumptions.

How do I calculate the pouch filling speed I need?

Use finished sauce output in kg/h multiplied by 1,000 and divided by the fill weight in grams per pouch. For example, 500 kg/h at 500 g per pouch is an arithmetic estimate of 1,000 pouches per hour before operating allowances. It is not a machine performance guarantee.

Should I use premade pouches or rollstock for tomato sauce?

Premade pouches are converted bags handled by a pouch-filling machine; rollstock is a printed web formed into packs by a form-fill-seal machine. The choice depends on the desired format, fill size, required output, equipment and package features.

Which pouch format works for tomato sauce?

There is no universal format. Stand-up, spouted, three-side-seal and rollstock-formed packs serve different dispensing, serving-size and equipment needs. Choose after confirming the product, fill weight, line, seal design, storage and any thermal process.

Can a spout pouch be pasteurized after filling?

Only if the pouch, fitment, closure and complete package are designed and validated for the specific product and process. Confirm the approved thermal schedule with the responsible food-safety team and test the actual filled package through heating, cooling and handling.

What causes leaks at a tomato sauce pouch seal?

Possible contributors include product residue in the seal area, wrinkles, poor pouch presentation, unsuitable sealing settings, worn tooling or a package-process mismatch. Inspect the actual filled pouch and investigate using an agreed seal and leak-test protocol.

What information should I send for a tomato sauce pouch quote?

Send the product and texture, fill weight, pouch format and dimensions, target output, filling temperature and method, machine brand and model, any post-fill heat process, storage and shelf-life target, destination market, order quantity and number of SKUs.

Plan the Package Around the Real Line

Get a tomato sauce pouch review

Send the product and texture, fill weight, pouch type, target output, filler model, filling temperature, post-fill process, storage target, quantity and artwork status. Runlong Pack can review the flexible-packaging brief; equipment selection and food-process validation remain with your equipment supplier and qualified food-safety team.
